Yellow Metal Round Button Switch

Yellow metal round button switch Metal push button switches are wear-resistant, durable and waterproof metal electromechanical components that can operate key functions or simply turn on/off the device. Looking forward to our cooperation!

Request a Quote

Description

1. Product Introduction

Yellow metal round button switch waterproof stainless steel metal round metal actuator button switch, high-quality metal material and IP65 waterproof protection, can be used in humid or dusty environments.

2.Product Parameter (Specification)

Thremal current	5A	2A	3A
Contact type	B:1NO+1NC/2NO+2NC	1NO	C:1NO B:1NO+1NC/2NO+2NC
Contact material	Silver plated gold	Silver plated	Silver plated gold
Degree of protection	IP65
Maximum voltage	250VAC/DC
Minimum applicable load	5VAC/DC 1mA
Trminal style	110” solder/Quick connect
Operating temperature	-25℃+55℃
Operating humidity	45-85%RH
Contact resistance	50MQ max
Insulation resistance	100MΩmin(500VDC megger)
Vibration resistance	10to 55Hz amplitude 1.2mm P-P
Degree of protection	>10g
Electrical life	100,000 operations minimum (at full rated load)
Mechanical Life	Maintained:1000,0000perations minimum
	Momentary:1,000,000 operations minimum
	Seleclor/Keylock:250,000 operations minimum
Dielectrical life	Switch unit:2,000VDC,1min between live/dead part and terminals of different poles
	1,000VDC,1minute between terminals of the same pole;
	1,500VDC,1minute between contact and lamp terminals
	lllumination unit:2,000VDC,1min between live part/ground
Soldering temperature	20W/5 seconds or 260℃/3 seconds

3.Product features and applications

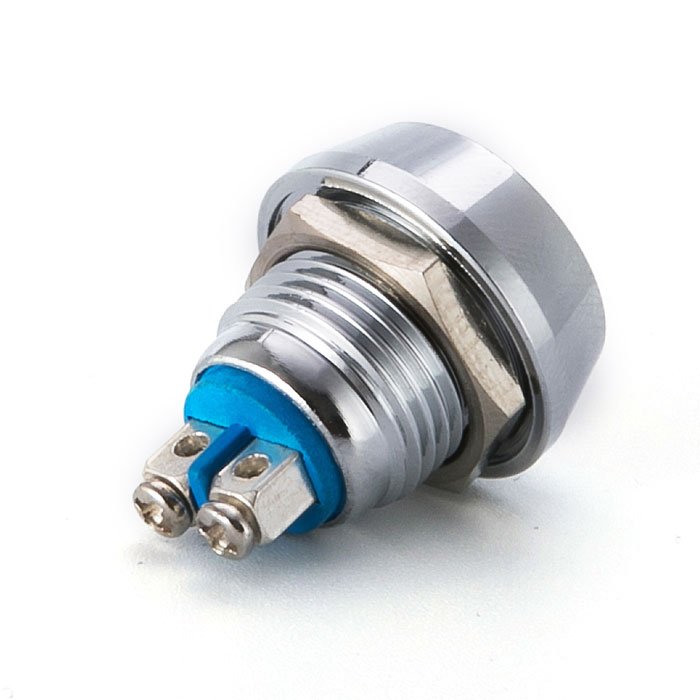

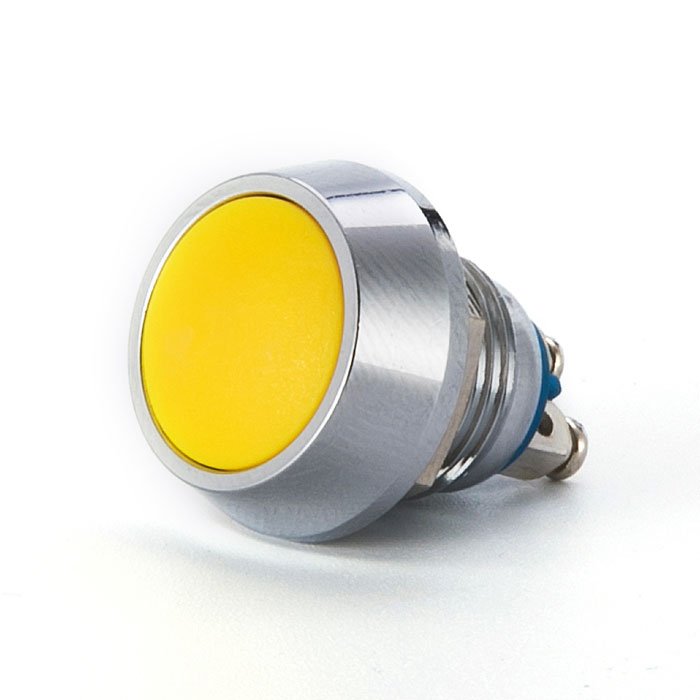

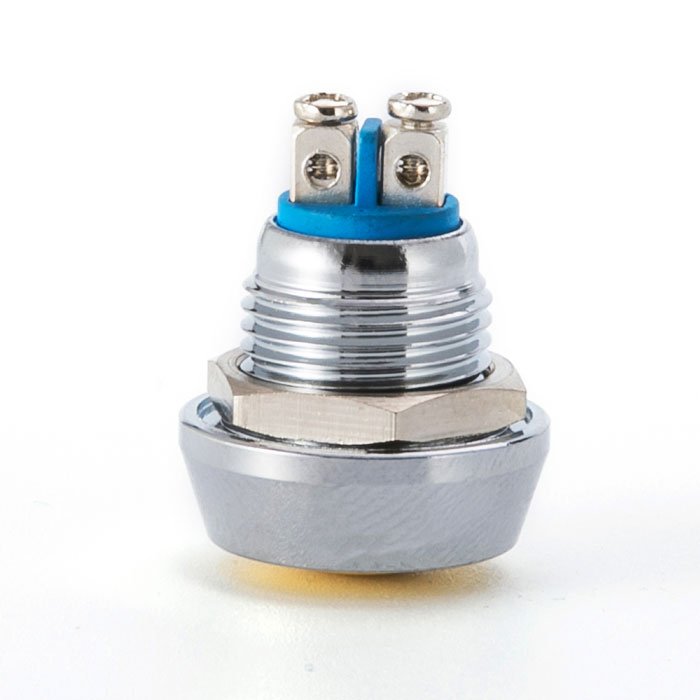

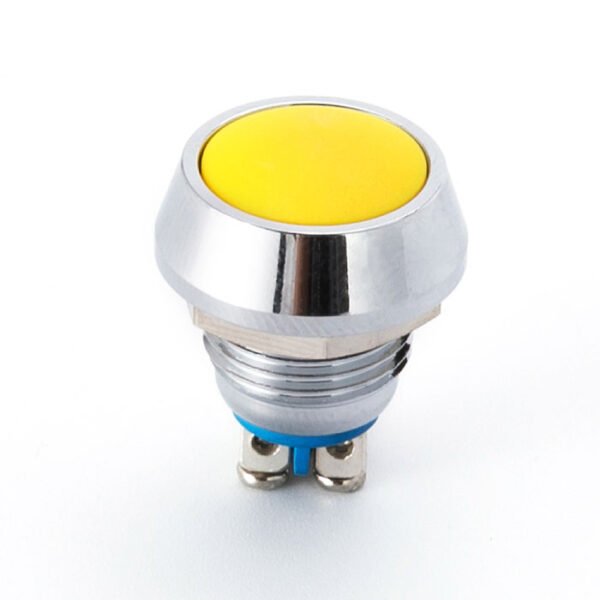

Yellow metal round button switch Lock the button switch: press the button-power on, release your finger-keep the power on, press the button again-power off. Metal button head shape: round yellow button, sturdy and durable.Made of zinc alloy, electroplated surface, sturdy and durable. High-end bright appearance and good touch. dustproof, waterproof and moisture-proof, very suitable for outdoor use. Screw clamp terminals make installation easier. The metal button head is durable and can be pressed for a long time.

4. Product Details

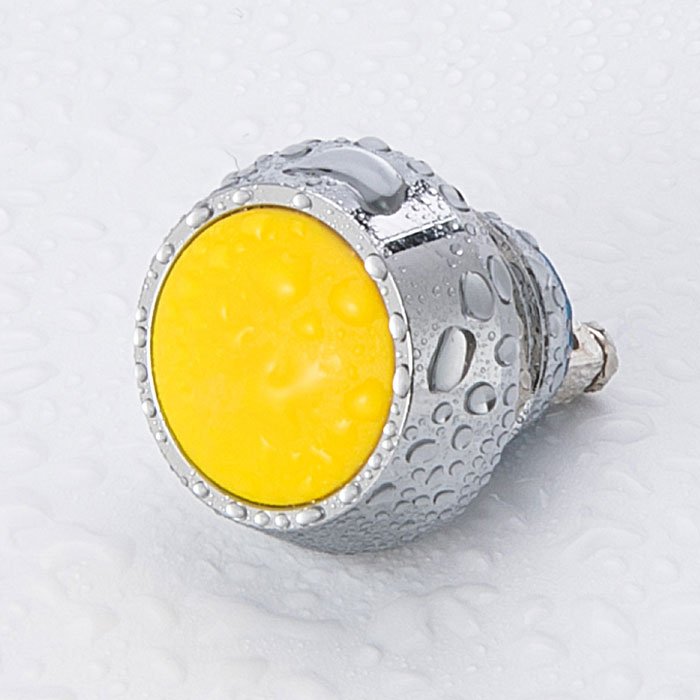

Yellow metal round button switch It is a reliable, low-cost device, available in a variety of colors. Universal instant button stainless steel switches, from car audio amplifiers, LED lights in cars, homes, etc. Its IP67 waterproof rating makes it suitable for marine and external environments.
