Description
1. Product Introduction

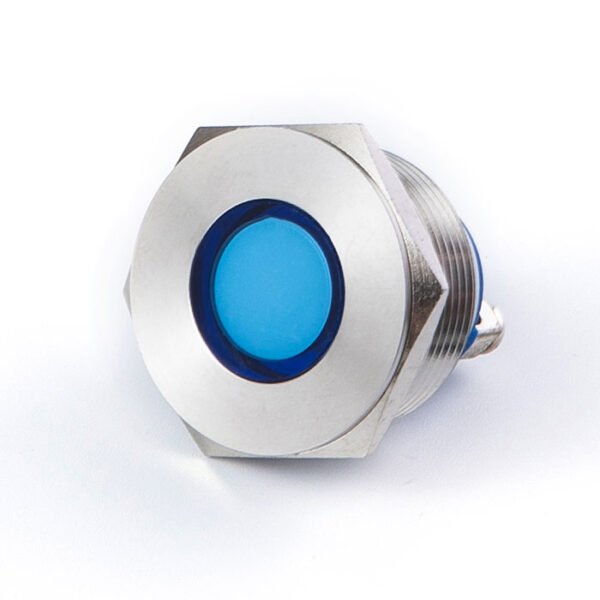

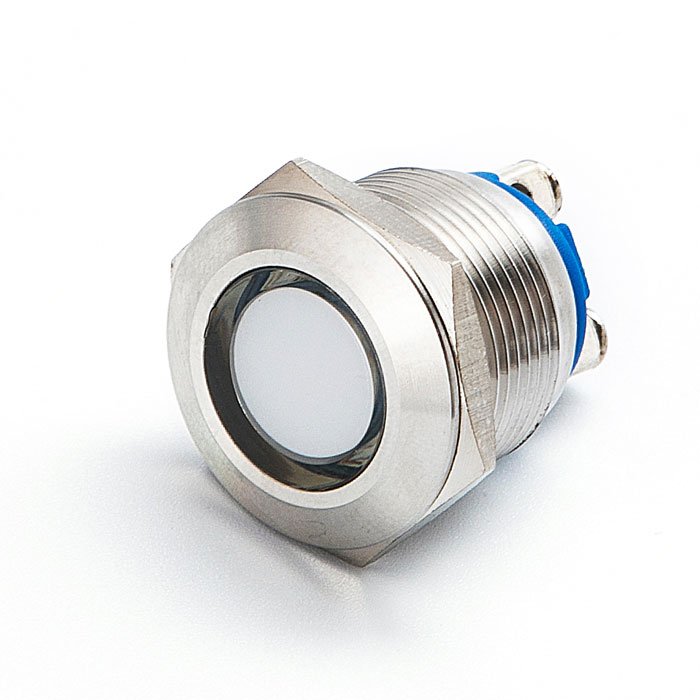

anti-vandal push button Button switch: press and hold, ON; release, close. Power life: 200,000 times. Mechanical life: 1000,000 cycles.Momentary switch mounting hole: 19 mm; rated current and voltage: 3A / 250VAC. Start button terminal type: 3-pin wiring terminal.
2.Product Parameter (Specification)
| Thremal current | 5A | 2A | 3A |
| Contact type | B:1NO+1NC/2NO+2NC | 1NO | C:1NO B:1NO+1NC/2NO+2NC |
| Contact material | Silver plated gold | Silver plated | Silver plated gold |
| Degree of protection | IP65 | ||
| Maximum voltage | 250VAC/DC | ||
| Minimum applicable load | 5VAC/DC 1mA | ||
| Trminal style | 110” solder/Quick connect | ||
| Operating temperature | -25℃+55℃ | ||
| Operating humidity | 45-85%RH | ||
| Contact resistance | 50MQ max | ||
| Insulation resistance | 100MΩmin(500VDC megger) | ||
| Vibration resistance | 10to 55Hz amplitude 1.2mm P-P | ||
| Degree of protection | >10g | ||
| Electrical life | 100,000 operations minimum (at full rated load) | ||
| Mechanical Life | Maintained:1000,0000perations minimum | ||
| Momentary:1,000,000 operations minimum | |||
| Seleclor/Keylock:250,000 operations minimum | |||
| Dielectrical life | Switch unit:2,000VDC,1min between live/dead part and terminals of different poles | ||
| 1,000VDC,1minute between terminals of the same pole; | |||
| 1,500VDC,1minute between contact and lamp terminals | |||
| lllumination unit:2,000VDC,1min between live part/ground | |||
| Soldering temperature | 20W/5 seconds or 260℃/3 seconds | ||
3.Product features and applications

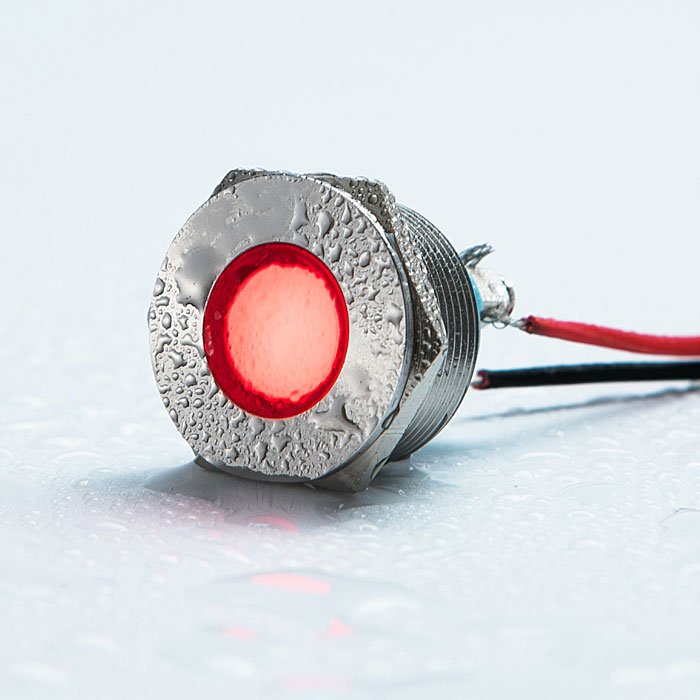

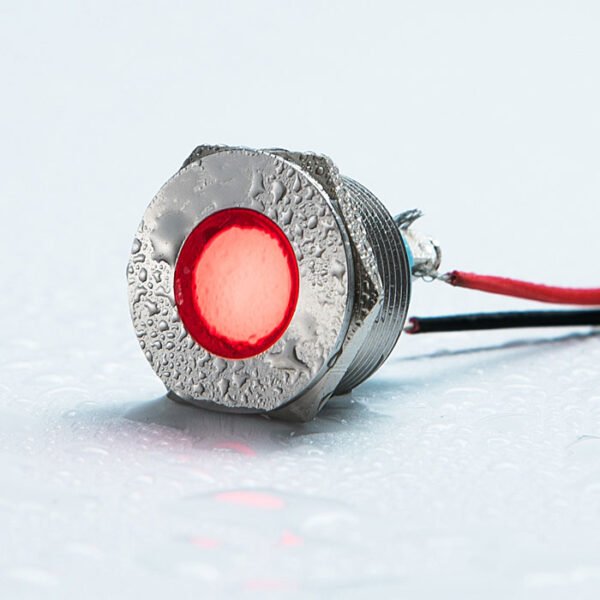

anti-vandal push button 19mm stainless steel material, sturdy and durable. High-end appearance and good touch. Waterproof IP67 grade, can be used in humid or dusty environment.
4. Product Details

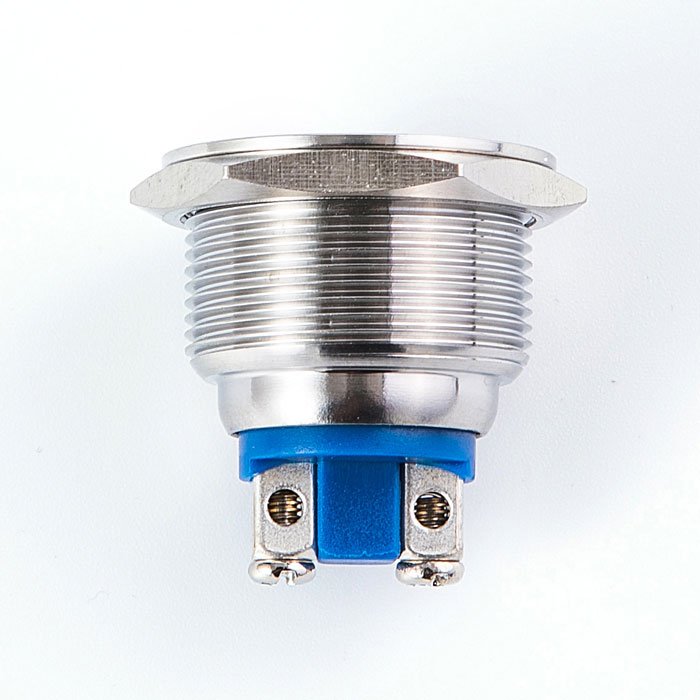

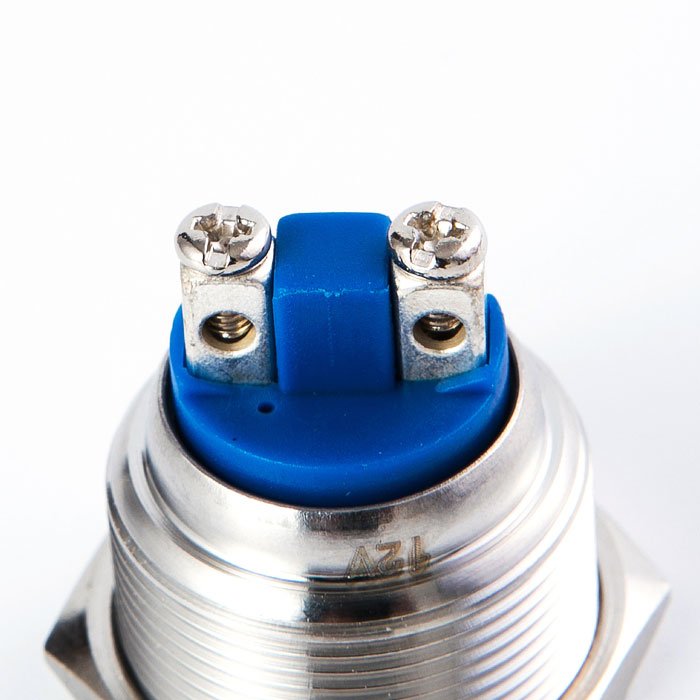

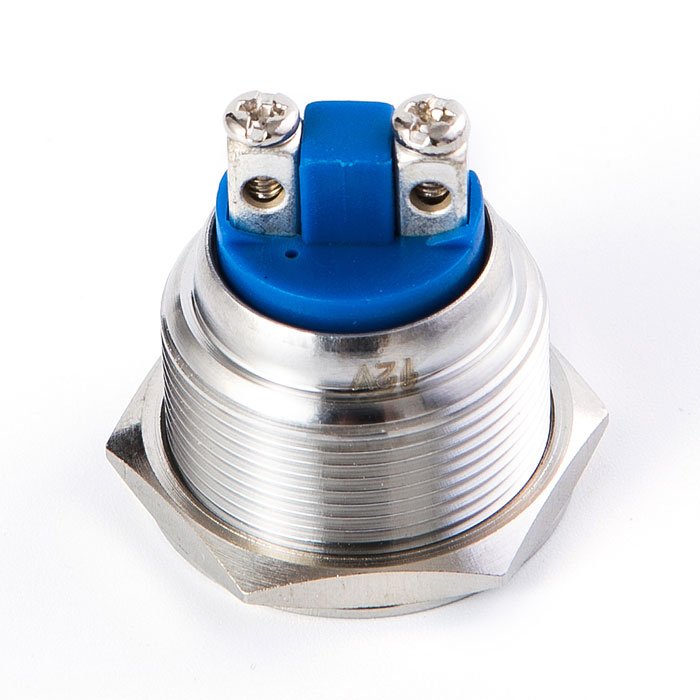

anti-vandal push button With pre-wired 3-pin socket for easy installation. Contact configuration 1NO1NC. It is widely used in control circuits, and can be used in automobiles, ships, trucks, households, industrial equipment, medical equipment, etc
