Push Button Switch

Metal Push Button

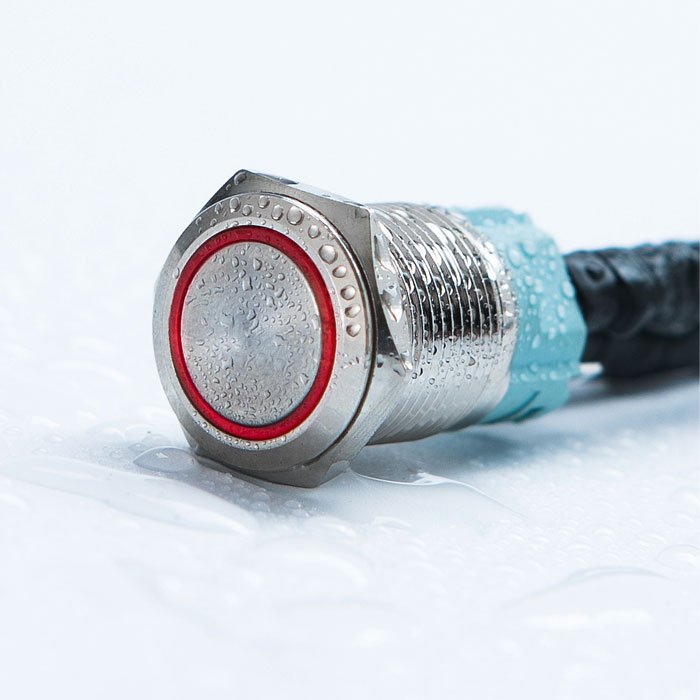

metal push button Stainless steel flat round button switch, high-quality metal material and IP65 waterproof protection, can be used in humid or dusty environments. We are expecting become your long term partner in china......

Request a Quote

Description

1. Product Introduction

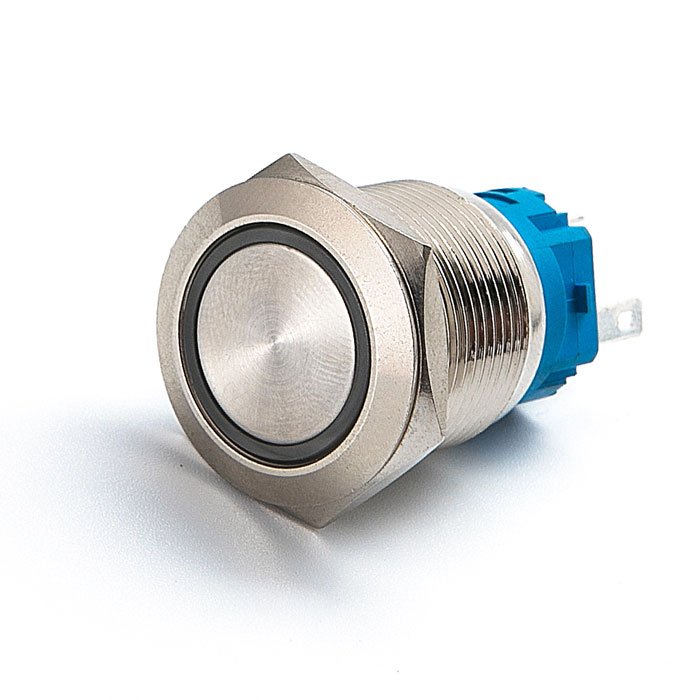

metal push button Button switch: press and hold, ON; release, close. The on/off button switch has a blue indicator light. The switch is separated from the LED ring light. The LED light can be on all the time or only when the switch is in power-on mode, depending on how you connect it. Power life: 200,000 times. Mechanical life: 1000,000 cycles.

2.Product Parameter (Specification)

Thremal current	5A	2A	3A
Contact type	B:1NO+1NC/2NO+2NC	1NO	C:1NO B:1NO+1NC/2NO+2NC
Contact material	Silver plated gold	Silver plated	Silver plated gold
Degree of protection	IP65
Maximum voltage	250VAC/DC
Minimum applicable load	5VAC/DC 1mA

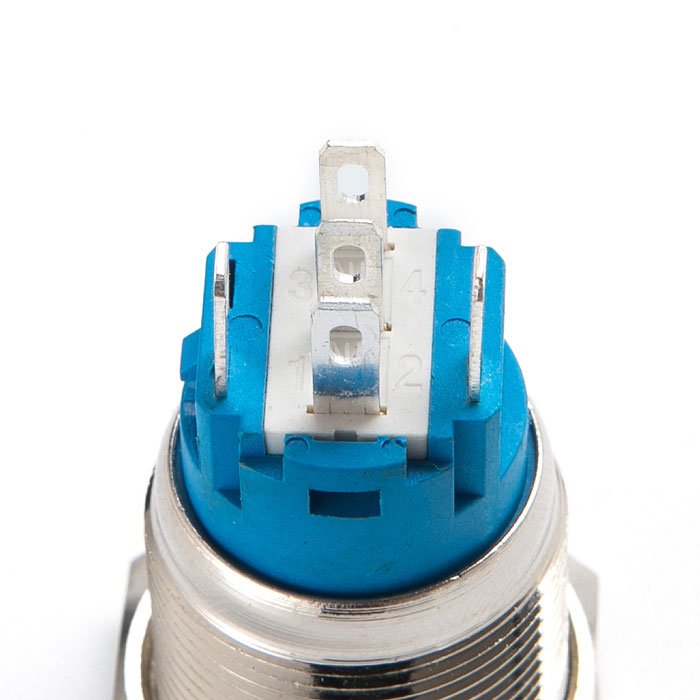

Trminal style	110” solder/Quick connect
Operating temperature	-25℃+55℃
Operating humidity	45-85%RH
Contact resistance	50MQ max
Insulation resistance	100MΩmin(500VDC megger)
Vibration resistance	10to 55Hz amplitude 1.2mm P-P
Degree of protection	>10g
Electrical life	100,000 operations minimum (at full rated load)
Mechanical Life	Maintained:1000,0000perations minimum
	Momentary:1,000,000 operations minimum
	Seleclor/Keylock:250,000 operations minimum
Dielectrical life	Switch unit:2,000VDC,1min between live/dead part and terminals of different poles
	1,000VDC,1minute between terminals of the same pole;
	1,500VDC,1minute between contact and lamp terminals
	lllumination unit:2,000VDC,1min between live part/ground
Soldering temperature	20W/5 seconds or 260℃/3 seconds

3.Product features and applications

metal push button The lock button switch is made of high-quality stainless steel and has a mechanical life of up to 10,000 cycles. Easy to connect and durable, IP65 waterproof, suitable for almost all electric vehicle motor start, power start equipment, can also be used as an access control button, instead of electrical equipment, household appliances.

4. Product Details

metal push button High-quality metal materials and IP65 waterproof protection; the switch can be used for the modification of cars, motorcycles, ships, computer light switches, industrial control, and access control.
