emergency stop mushroom button Metal push button switches are wear-resistant, durable and waterproof metal electromechanical components that can operate key functions or simply turn on/off the device.

Request a Quote

Description

1. Product Introduction

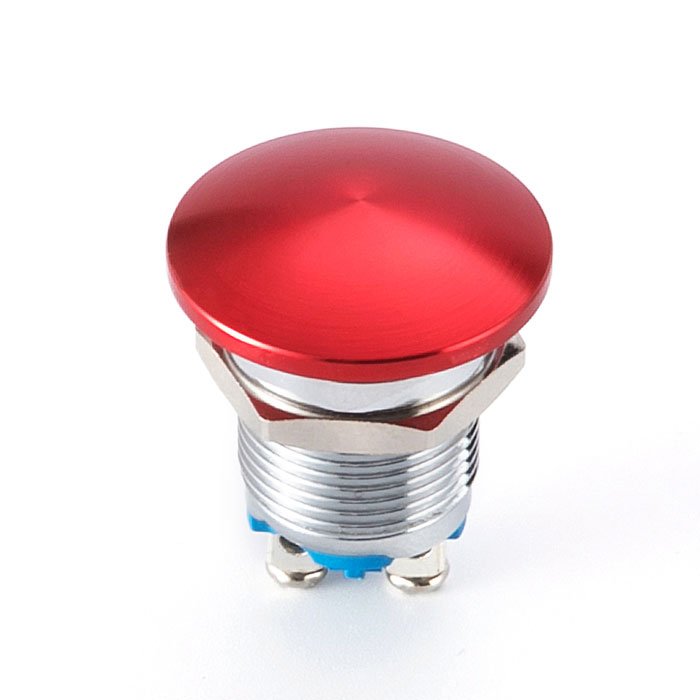

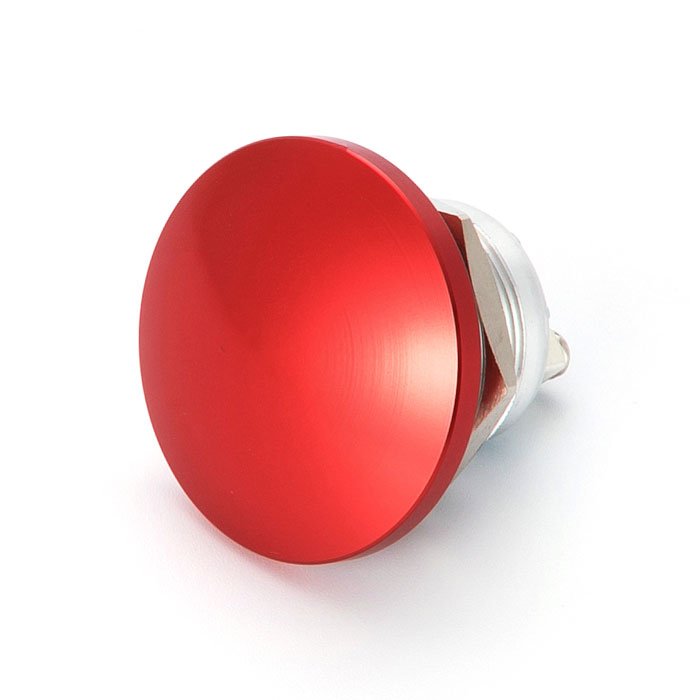

This is a emergency stop mushroom button red mushroom head emergency stop switch (mushroom switch, push button switch). This is a nice button for any project that requires an emergency stop switch.

2.Product Parameter (Specification)

Thremal current	5A	2A	3A
Contact type	B:1NO+1NC/2NO+2NC	1NO	C:1NO B:1NO+1NC/2NO+2NC
Contact material	Silver plated gold	Silver plated	Silver plated gold
Degree of protection	IP65
Maximum voltage	250VAC/DC
Minimum applicable load	5VAC/DC 1mA
Trminal style	110” solder/Quick connect
Operating temperature	-25℃+55℃
Operating humidity	45-85%RH
Contact resistance	50MQ max
Insulation resistance	100MΩmin(500VDC megger)
Vibration resistance	10to 55Hz amplitude 1.2mm P-P
Degree of protection	>10g
Electrical life	100,000 operations minimum (at full rated load)
Mechanical Life	Maintained:1000,0000perations minimum
	Momentary:1,000,000 operations minimum
	Seleclor/Keylock:250,000 operations minimum
Dielectrical life	Switch unit:2,000VDC,1min between live/dead part and terminals of different poles
	1,000VDC,1minute between terminals of the same pole;
	1,500VDC,1minute between contact and lamp terminals
	lllumination unit:2,000VDC,1min between live part/ground
Soldering temperature	20W/5 seconds or 260℃/3 seconds

3.Product features and applications

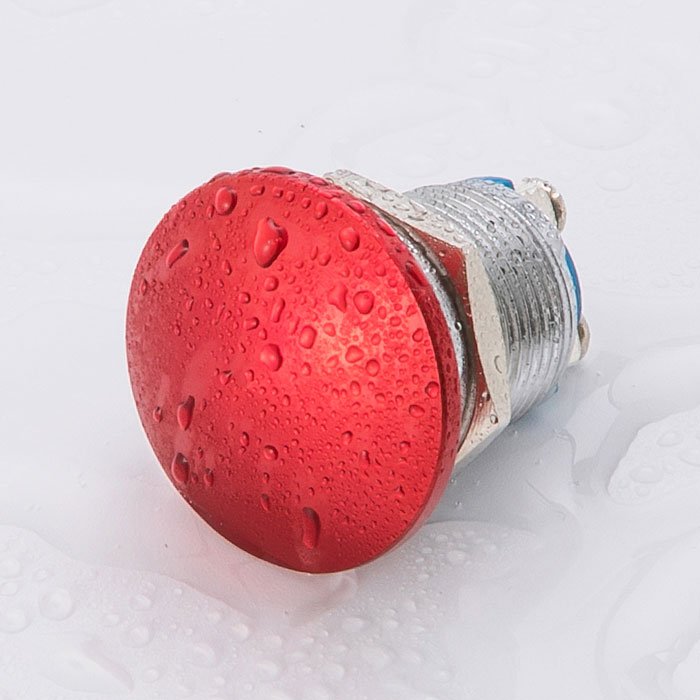

emergency stop mushroom button Stainless steel material, feel good, sturdy and durable. waterproof IP67 grade. for easy installation.Corrosion resistance, wear resistance and pressure resistance. Different switches, buttons and selectors can be used to control automation according to the needs of each installation. Suitable for industrial control of electrical appliances, automation, doors, shutters, etc.

4. Product Details

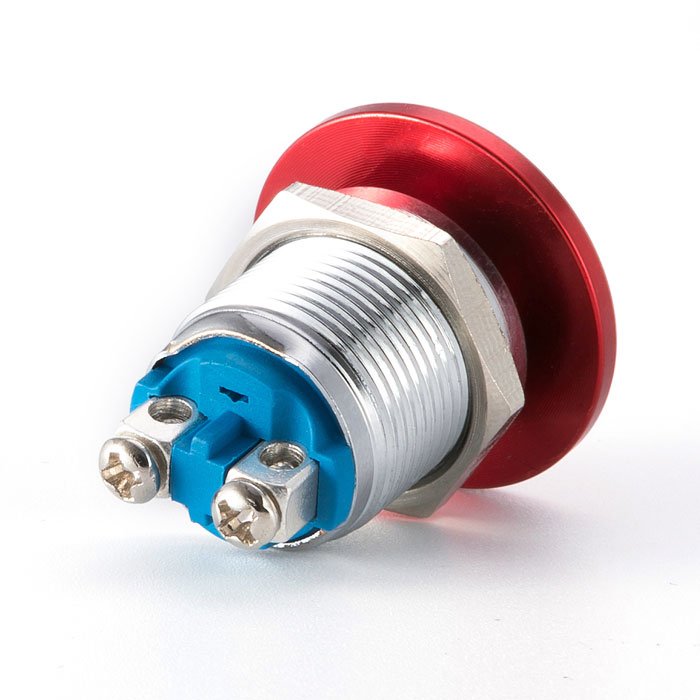

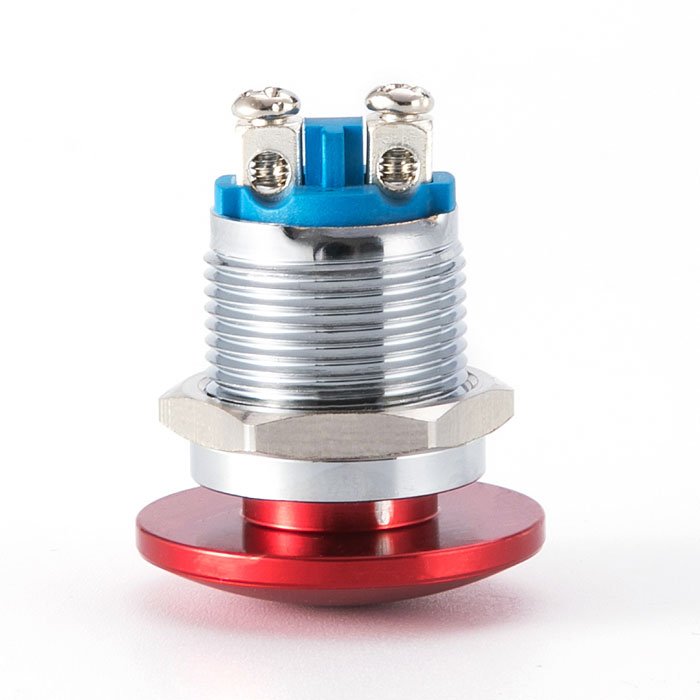

emergency stop mushroom button It is a button with a very sturdy metal body. Press the red button to block the switch. Unlocking is done by turning the red mushroom. The emergency button is used in the control box of electrical equipment and automation.It is easy to configure in the harsh environment of various industries and workshops.
