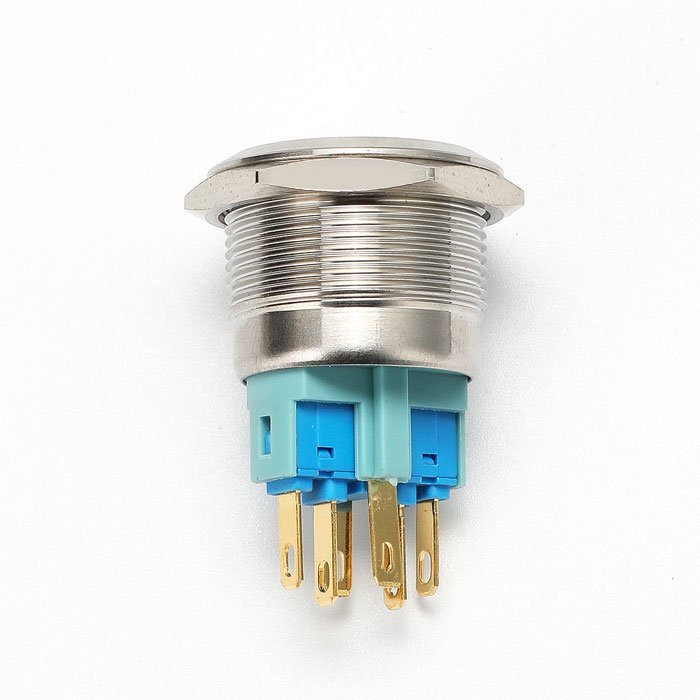

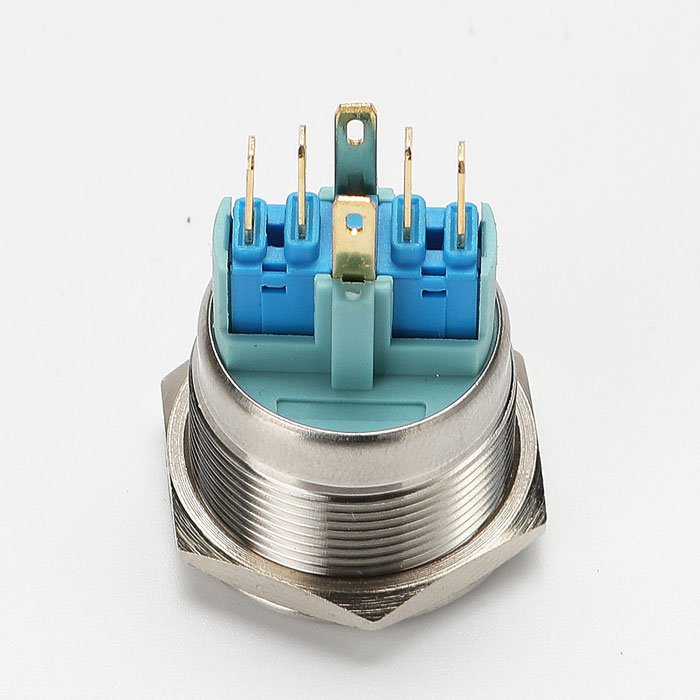

Aluminum Metal Push Button Switch

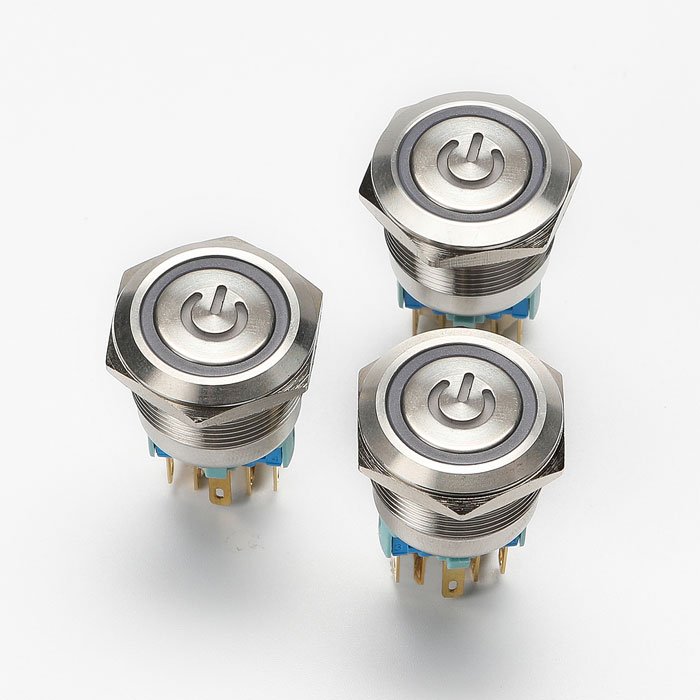

aluminum metal push button switch 22mm push button switch, metal push button switch with color round button and power symbol.We are expecting become your long term partner in china......

Request a Quote

Description

1. Product Introduction

This kind of momentary switch aluminum metal push button switch has good waterproof effect and is widely used to control LED and circuits. It is also suitable for refitting cars, ships, yachts, household appliances, industrial applications,etc. IP65 waterproof protection, anti-rust, can be used indoors, wet or dusty environment.

2.Product Parameter (Specification)

Thremal current	5A	2A	3A
Contact type	B:1NO+1NC/2NO+2NC	1NO	C:1NO B:1NO+1NC/2NO+2NC
Contact material	Silver plated gold	Silver plated	Silver plated gold
Degree of protection	IP65
Maximum voltage	250VAC/DC
Minimum applicable load	5VAC/DC 1mA

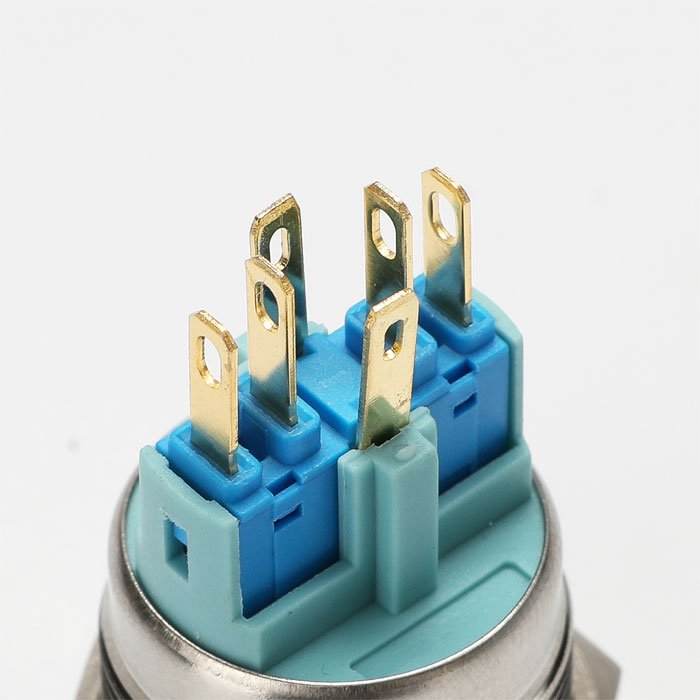

Trminal style	110” solder/Quick connect
Operating temperature	-25℃+55℃
Operating humidity	45-85%RH
Contact resistance	50MQ max
Insulation resistance	100MΩmin(500VDC megger)
Vibration resistance	10to 55Hz amplitude 1.2mm P-P
Degree of protection	>10g
Electrical life	100,000 operations minimum (at full rated load)
Mechanical Life	Maintained:1000,0000perations minimum
	Momentary:1,000,000 operations minimum
	Seleclor/Keylock:250,000 operations minimum
Dielectrical life	Switch unit:2,000VDC,1min between live/dead part and terminals of different poles
	1,000VDC,1minute between terminals of the same pole;
	1,500VDC,1minute between contact and lamp terminals
	lllumination unit:2,000VDC,1min between live part/ground
Soldering temperature	20W/5 seconds or 260℃/3 seconds

3.Product features and applications

aluminum metal push button switch The advantage of the button is the momentary switch function of the button: press-open, release-close; durability: minimum 100,000 operations; good moisture-proof and waterproof performance IP65; convenient installation: with solder terminals; mounting hole size: 22mm general type; wide range of uses: household Electrical equipment, industrial operation equipment, modified equipment, etc. are all applicable.

4. Product Details

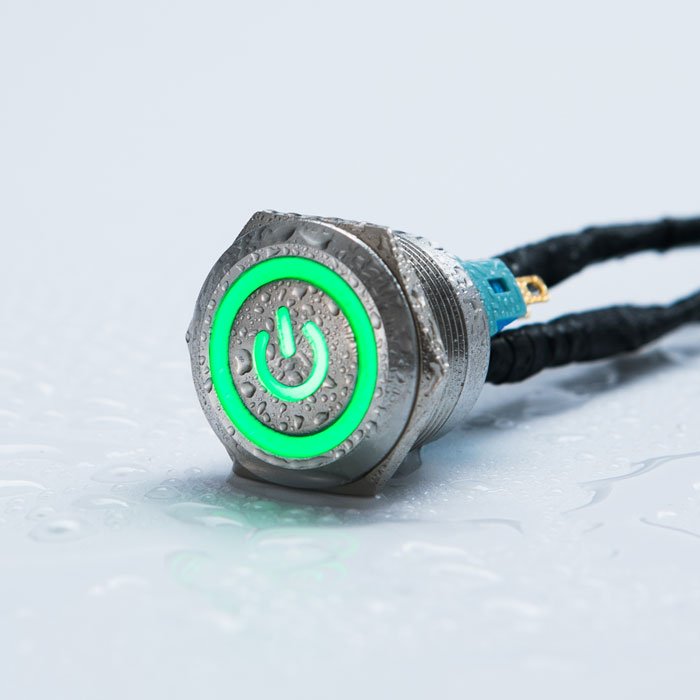

aluminum metal push button switch The halo around the button head lights up when activated. It can be wired to make the LED lighting constant or only when the switch is in the on position.
