Description
1. Product Introduction
This kind of self-locking switch 6 pin 22mm metal push button has good waterproof effect and is widely used to control LED and circuits. It is also suitable for refitting cars, ships, yachts, household appliances, industrial applications,etc.
2.Product Parameter (Specification)
| Thremal current | 5A | 2A | 3A |
| Contact type | B:1NO+1NC/2NO+2NC | 1NO | C:1NO B:1NO+1NC/2NO+2NC |
| Contact material | Silver plated gold | Silver plated | Silver plated gold |
| Degree of protection | IP65 | ||
| Maximum voltage | 250VAC/DC | ||
| Minimum applicable load | 5VAC/DC 1mA | ||
| Trminal style | 110” solder/Quick connect | ||
| Operating temperature | -25℃+55℃ | ||
| Operating humidity | 45-85%RH | ||
| Contact resistance | 50MQ max | ||
| Insulation resistance | 100MΩmin(500VDC megger) | ||
| Vibration resistance | 10to 55Hz amplitude 1.2mm P-P | ||
| Degree of protection | >10g | ||
| Electrical life | 100,000 operations minimum (at full rated load) | ||
| Mechanical Life | Maintained:1000,0000perations minimum | ||
| Momentary:1,000,000 operations minimum | |||
| Seleclor/Keylock:250,000 operations minimum | |||
| Dielectrical life | Switch unit:2,000VDC,1min between live/dead part and terminals of different poles | ||
| 1,000VDC,1minute between terminals of the same pole; | |||
| 1,500VDC,1minute between contact and lamp terminals | |||
| lllumination unit:2,000VDC,1min between live part/ground | |||
| Soldering temperature | 20W/5 seconds or 260℃/3 seconds | ||
3.Product features and applications

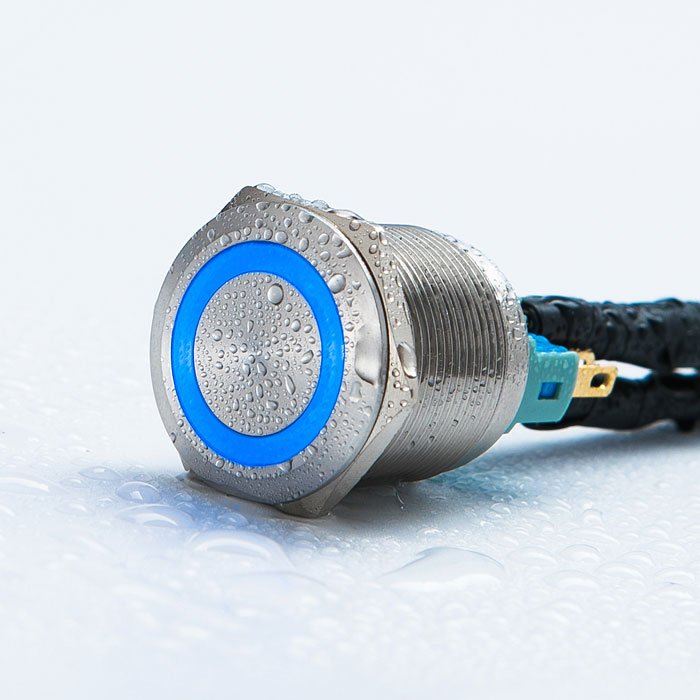

push-open, then push-close. It is fixed by rubber ring and hexagon nut, dustproof and waterproof. Durable and has good electrical conductivity. Ideal for automotive and marine projects, including controlling LED internal/external lights, ignition key switch replacement, universal start button or momentary horn. IP65 waterproof protection, anti-rust, can be used indoors, wet or dusty environment.
4. Product Details

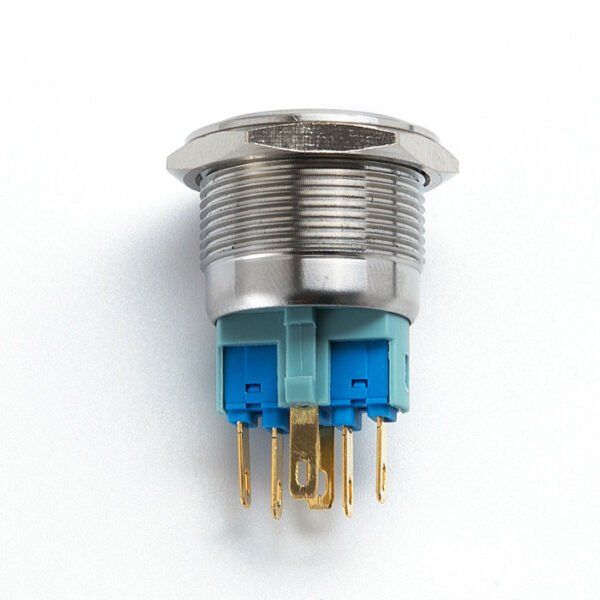

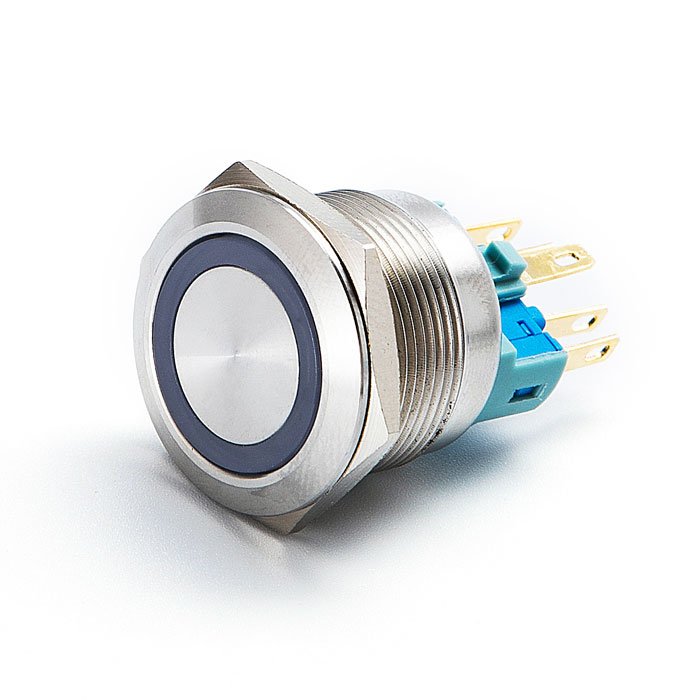

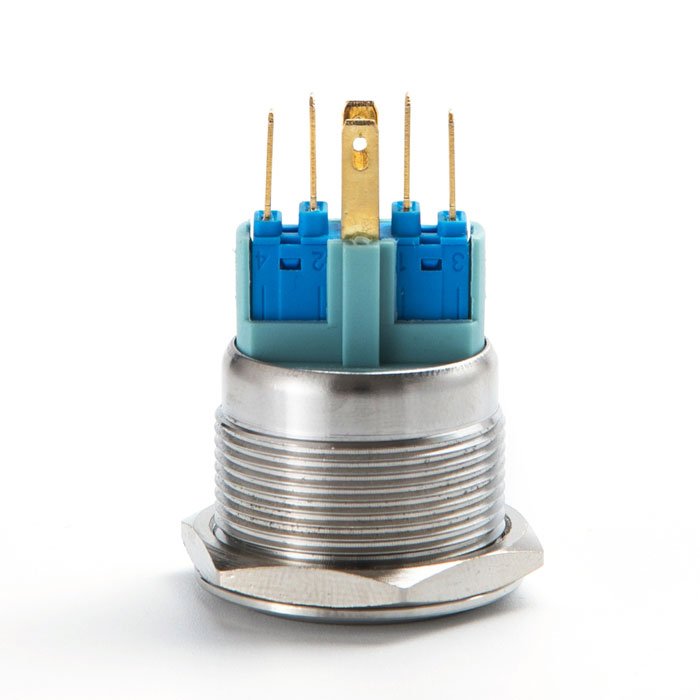

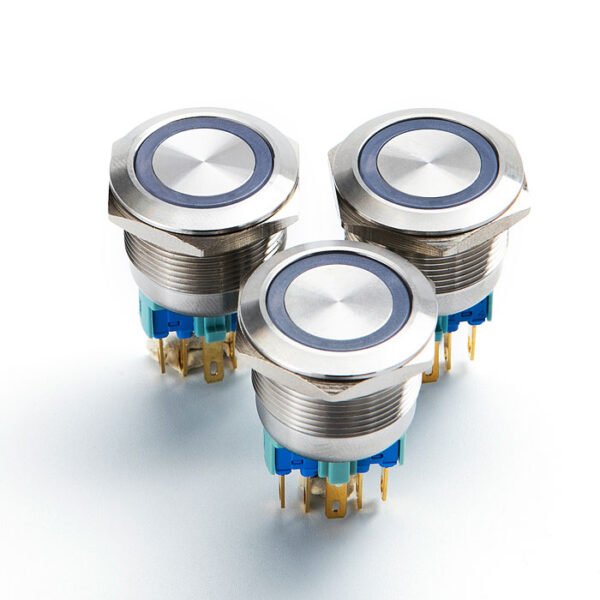

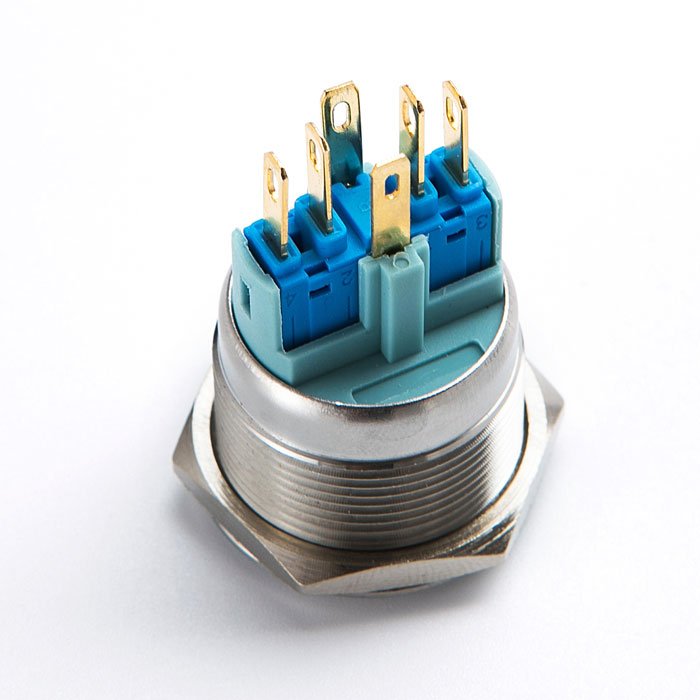

6 pin 22mm metal push button Stainless steel round button switch with ring, high-quality metal material and IP65 waterproof protection
