Push Button Switch

4-pin Power Symbol Switch

4-pin power symbol switch Metal push button switches are wear-resistant, durable and waterproof metal electromechanical components that can operate key functions or simply turn on/off the device.

Request a Quote

Description

1. Product Introduction

4-pin power symbol switch Stainless steel switch, with power symbol, high-quality metal material and IP65 waterproof protection, can be used in humid or dusty environments.A product that everyone loves.

2.Product Parameter (Specification)

Thremal current	5A	2A	3A
Contact type	B:1NO+1NC/2NO+2NC	1NO	C:1NO B:1NO+1NC/2NO+2NC
Contact material	Silver plated gold	Silver plated	Silver plated gold
Degree of protection	IP65
Maximum voltage	250VAC/DC
Minimum applicable load	5VAC/DC 1mA
Trminal style	110” solder/Quick connect
Operating temperature	-25℃+55℃
Operating humidity	45-85%RH
Contact resistance	50MQ max
Insulation resistance	100MΩmin(500VDC megger)
Vibration resistance	10to 55Hz amplitude 1.2mm P-P
Degree of protection	>10g
Electrical life	100,000 operations minimum (at full rated load)
Mechanical Life	Maintained:1000,0000perations minimum
	Momentary:1,000,000 operations minimum
	Seleclor/Keylock:250,000 operations minimum
Dielectrical life	Switch unit:2,000VDC,1min between live/dead part and terminals of different poles
	1,000VDC,1minute between terminals of the same pole;
	1,500VDC,1minute between contact and lamp terminals
	lllumination unit:2,000VDC,1min between live part/ground
Soldering temperature	20W/5 seconds or 260℃/3 seconds

3.Product features and applications

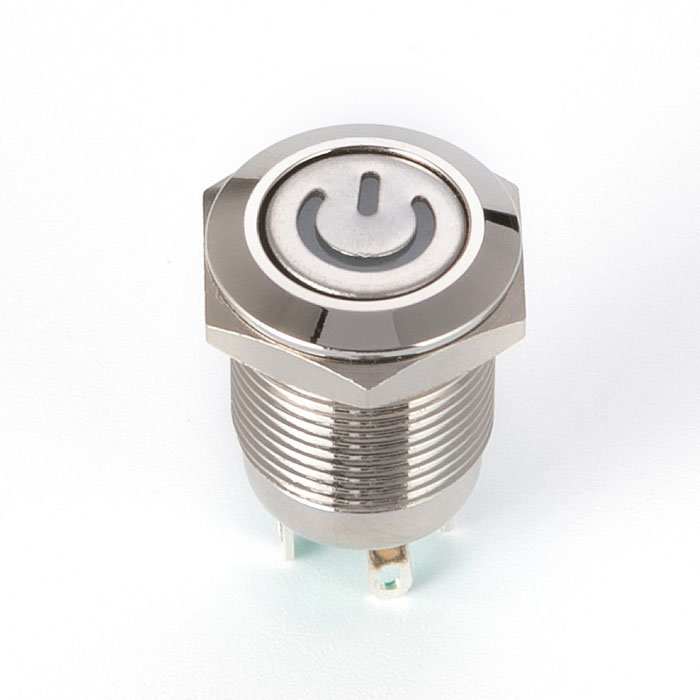

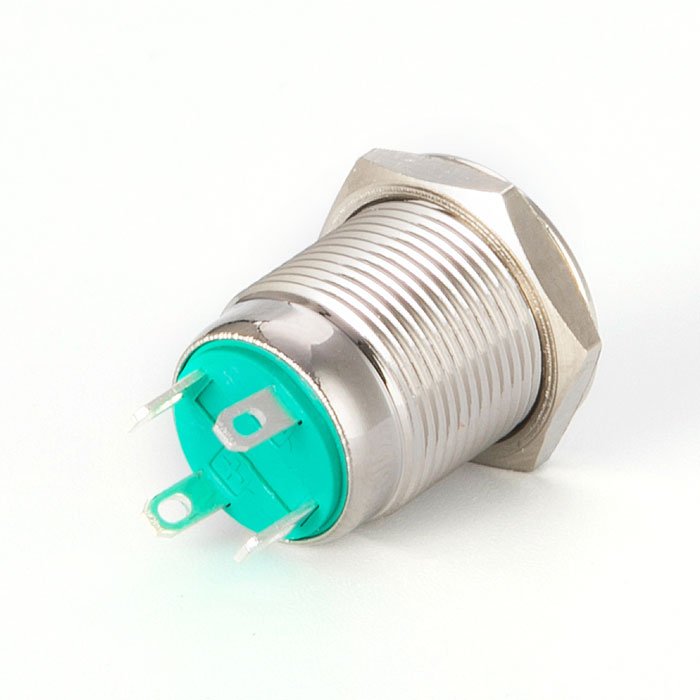

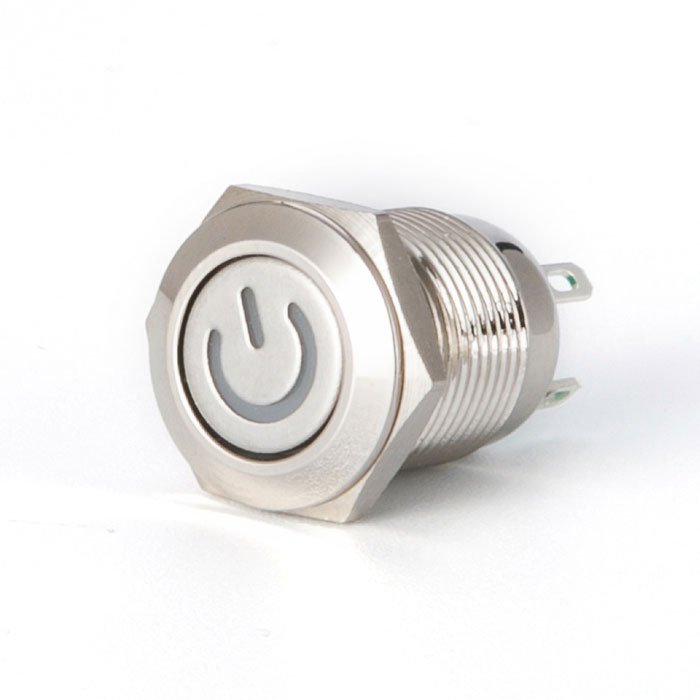

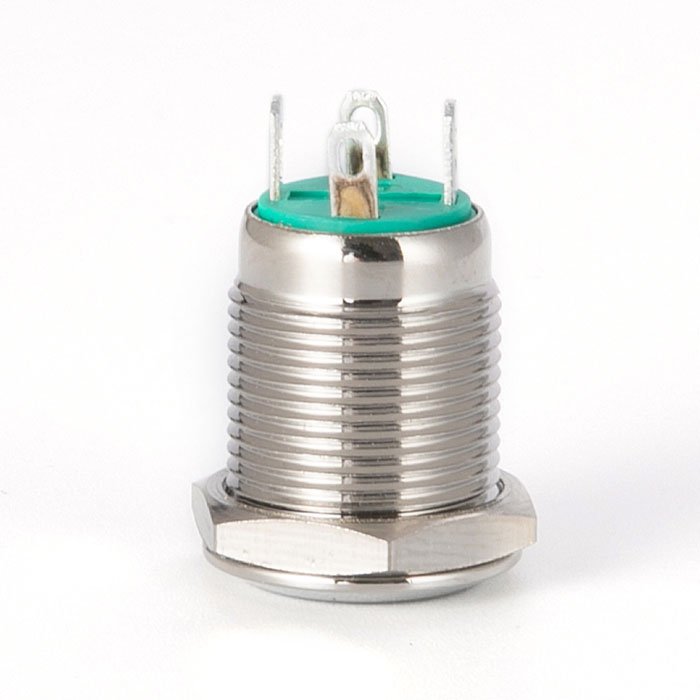

4-pin power symbol switch stainless steel material, It is fixed with hexagonal nuts, sturdy and durable. High-end appearance and good touch. Waterproof IP67 grade. With pre-wired 4-pin socket for easy installation. Contact configuration 1NO1NC. It is widely used in control circuits, and can be used in automobiles, ships, trucks, households, industrial equipment, medical equipment, etc.

4. Product Details

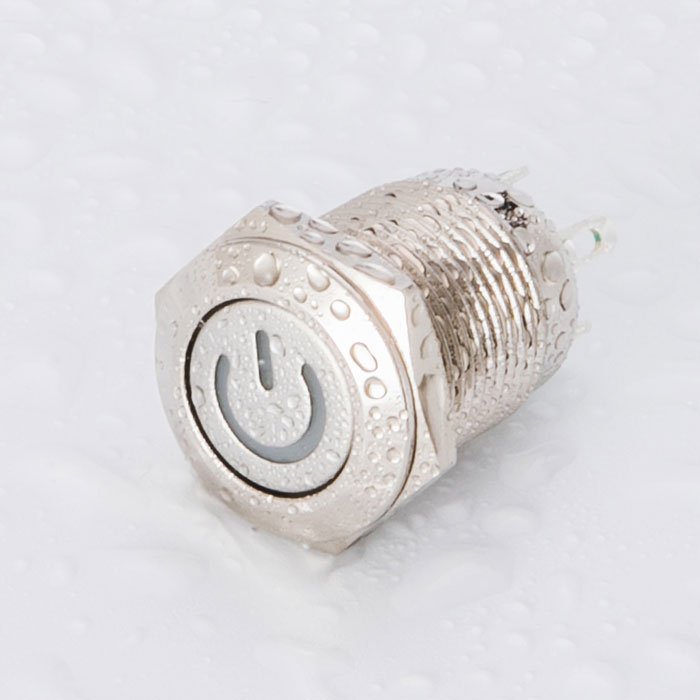

4-pin power symbol switch It is a reliable, low-cost device, available in a variety of colors. Its IP67 waterproof rating makes it suitable for marine and external environments. The sturdy metal housing can withstand vibration and other harsh environmental conditions.
