Description
1. Product Introduction
This panel mounted switch structure is robust and durable，The 22mm latching push switch is made of non flammable material and high temperature resistant plastic，has long service life and oxidation resistance.Unique mechanism design, easy assembly parts
2.Product Parameter (Specification)
| Rated insulation voltage | AC 600V (50/60Hz) | |
| Convectional current | 10A | |
| Insulation resistance | ≥50MΩ | |
| Contact resistance | ≤25MinΩ | |
| Mechanical life | 100*104(Pushbutton) | 50*104(Selector switch/Key switches) |
| Electrical life | 500*104(Pushbutton) | 250*104(Selector switch/Key switches) |
1.Surrounding temperature : -25℃~+55℃;
2.Air relative humidity : ≤85%;
3.It can be normally work under following condition : Vibration frequency is 2-80Hz and acceleration speed is 0.7g/h;
4.Pollution grade III,installation sort is III, protection grade is up to IP65;
5.Altitude : ≤2000m.
3.Product features and applications
The 22mm latching push switch has compact structure, fast and light operation. It is suitable for Industry and life. It has the advantages of safety, long life, reliability, excellent design and functional coordination.
4. Product Details

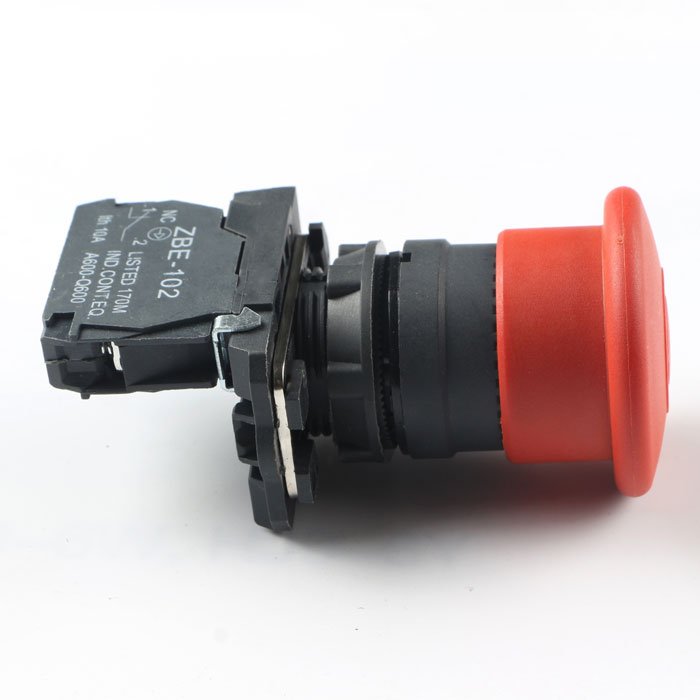

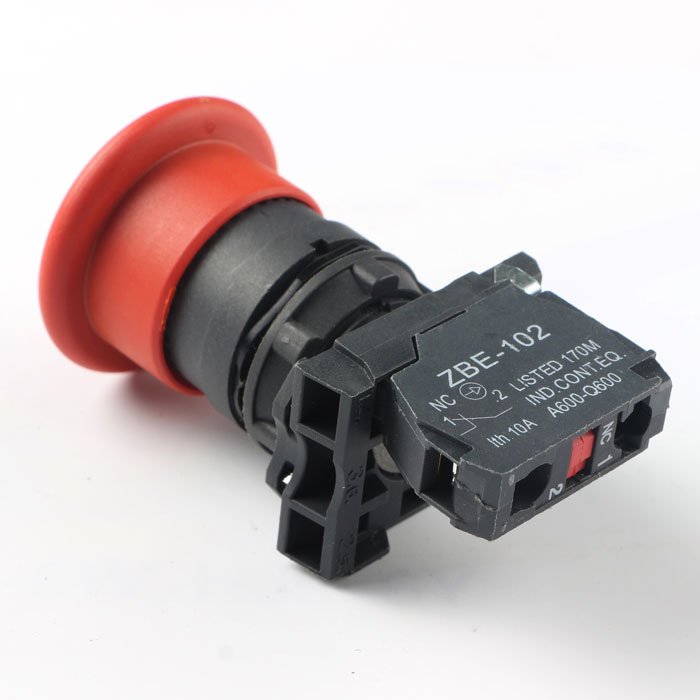

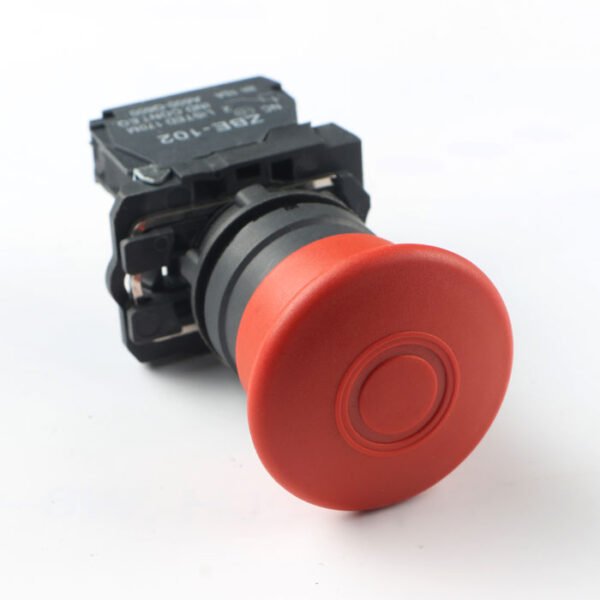

The 22mm latching push switch has Red round head, locking action, 22mm panel opening diameter.
When pressed, the button locks and is pressed again to release.
100% brand new and high quality, which can well replace the old or damaged ones.
