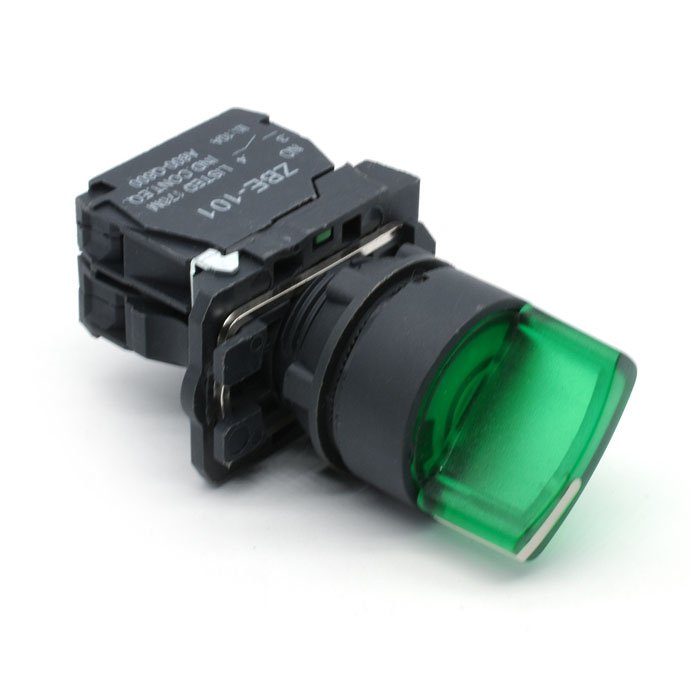

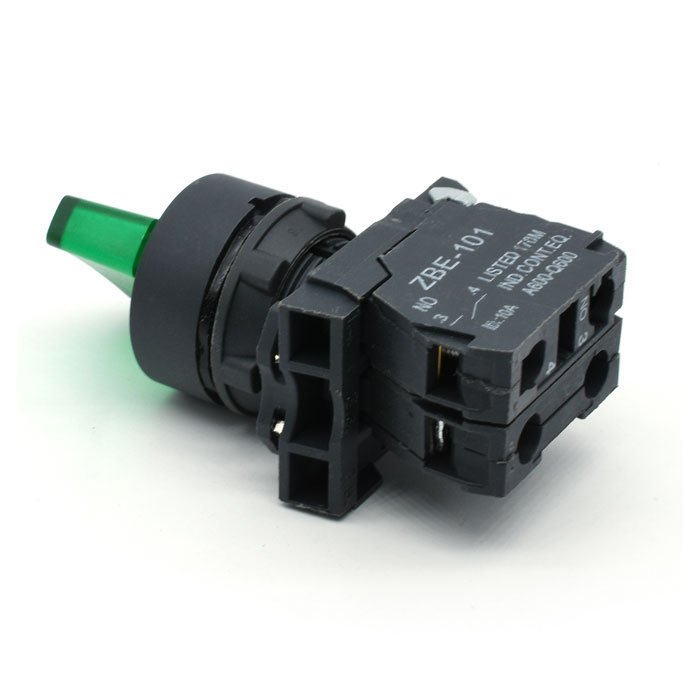

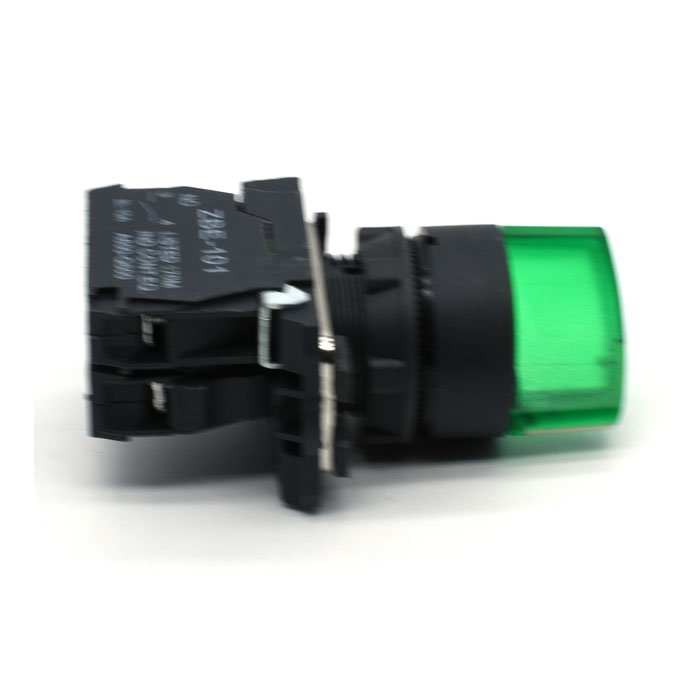

2 Position Selector Switch

2 position selector switch is bought in many countries. We are expecting become your long term partner in china......

Request a Quote

Description

1. Product Introduction

2 position selector switch is suitable for AC control circuit with voltage up to 660v and current 50hz, and the DC voltage is lower than 400v, which is mainly used for control signal and interlocking function. The main body of the button is made of zinc alloy, high-grade flame-retardant plastic. The contact is made of a special silver alloy material, which has a high corrosion resistance effect

2.Product Parameter (Specification)

Rated insulation voltage	AC 600V (50/60Hz)
Convectional current	10A
Insulation resistance	≥50MΩ
Contact resistance	≤25MinΩ
Mechanical life	100*10⁴(Pushbutton)	50*10⁴(Selector switch/Key switches)
Electrical life	500*10⁴(Pushbutton)	250*10⁴(Selector switch/Key switches)

1.Surrounding temperature : -25℃~+55℃;
2.Air relative humidity : ≤85%;
3.It can be normally work under following condition : Vibration frequency is 2-80Hz and acceleration speed is 0.7g/h;
4.Pollution grade III,installation sort is III, protection grade is up to IP65;
5.Altitude : ≤2000m.

3.Product features and applications

2 position selector switch The advantage of the button is the momentary switch function of the button: press-open, release-close，2 position selector switch has the advantages of safety, longevity, reliability and excellent design,harmonious in colour,design and function.Unique mechanism design, easy assembly parts.

4. Product Details

The 2 position selector switch adopts the modular combustion mode, which enables the product to meet the requirements of a variety of special control circuits. The connection is safer and the installation is firmer. Economical plastics can be used in acidic environments. The protection grade standard is IP40, and some models with sealing cover can reach IP67.
