Description
The regular color of the shell is yellow; Other colors can be made according to quantity. crane emergency stop switch Combined with domestic electrical industry technology and foreign industrial crane control. It is characterized by absorption components, selection of high-quality materials, pay attention to the rationalization of mechanical design, reasonable structure, advanced technical performance.
Product Parameter
| Model number | XAC-A8713 |
| Material | Plastic |
| Button color | Red,White,Black,Green |
| Max. Voltage | 660V |
| Conforming to standards | IEC947-5-1,EN60947-5-1,IEC337-1,NFC63-146,VDE0660-200 |
| Approvals | NEMKO. Special version:UL Listed A600-Q600,CSAA600-Q600 |
| Shock resistance | 100g conforming to IEC68-2-27 |
| Electric chock protectin | Class II conforming to IEC 536 and NFC 20-030 |
| Degree of protection Op. cycles | IP65 conforming to IEC 539, IP657 conforming to NF C20-010 |
| Mechanical durability | 1 million |
| Enclosure A | Double insulated polypropylene, coloured yellow througout |
| Thermal current(Ith) V | 10 |
| Rated insulation voltage(Ui) | ZB2-BEY,XEN-G,XAC-S: 600,degree of pollution 3 XEN-T:400, degree of pollution 3 |
| Rated impulse withstand voltage(Uimp) kV | 6 conforming to IEC947-1 |
| Positive operation | Mushrcom head pushbutton: N/C contact with positive opening operation to IEC947-5-1 section 3 |
| Contace operation | N/C of N/O slow break |
| Terminal referencing | Conforming to CENELEC EN 50013 |
| Short-circuit protection | 10A cartrudge fuse type gG(gl) |
| Cabling mm’ | Screw and captive cable clamp terminals. Capacity: min.1×0.5,max. , with or without cable end:2×1.5 or 1×2.5mm 2.6.3mm fast on connectors (on request), pleaseconsult your Regional customer centre |
Product features and applications
High quality ABS raw material, corrosion resistance, impact resistance;Sealed structure, waterproof and dust-proof;Clear, intuitive and convenient direction signs; Anti-collision using high quality engineering plastic, the shell is more anti-collision, more beautiful and strong.
The silver contact is made of copper base, and the contact part is made of silver, which increases the capacity of the contact and the stability of the weak current control system.
Our crane emergency stop switch strong durability, good circuit board performance.The products are suitable for dusty, outdoor, rain and snow working environment, supporting the use of electric hoist, crane, outdoor conveying system, construction machinery and other equipment that needs wired electrical remote control system.
Product Details

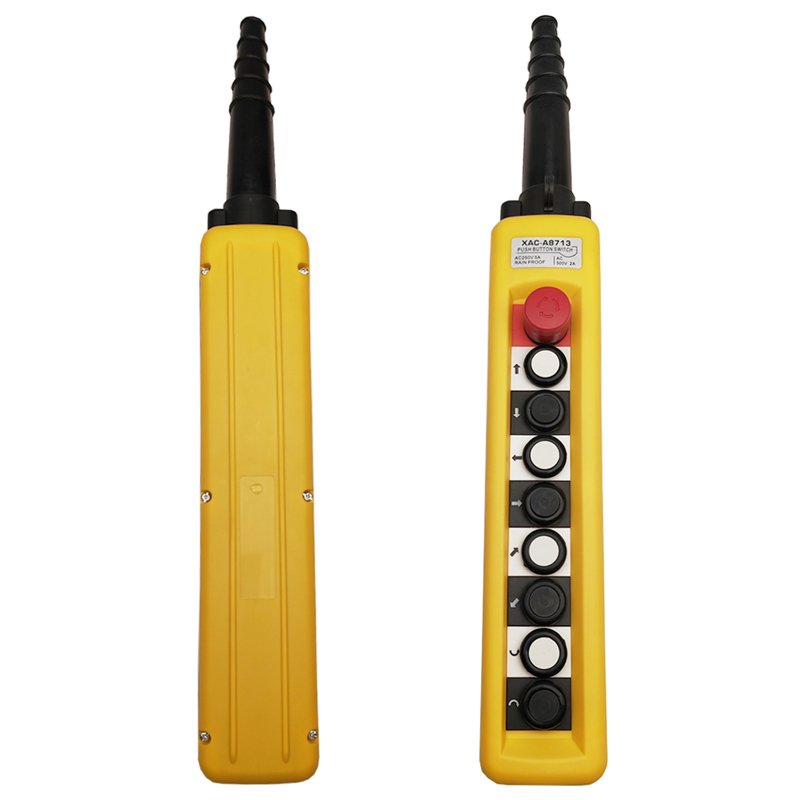

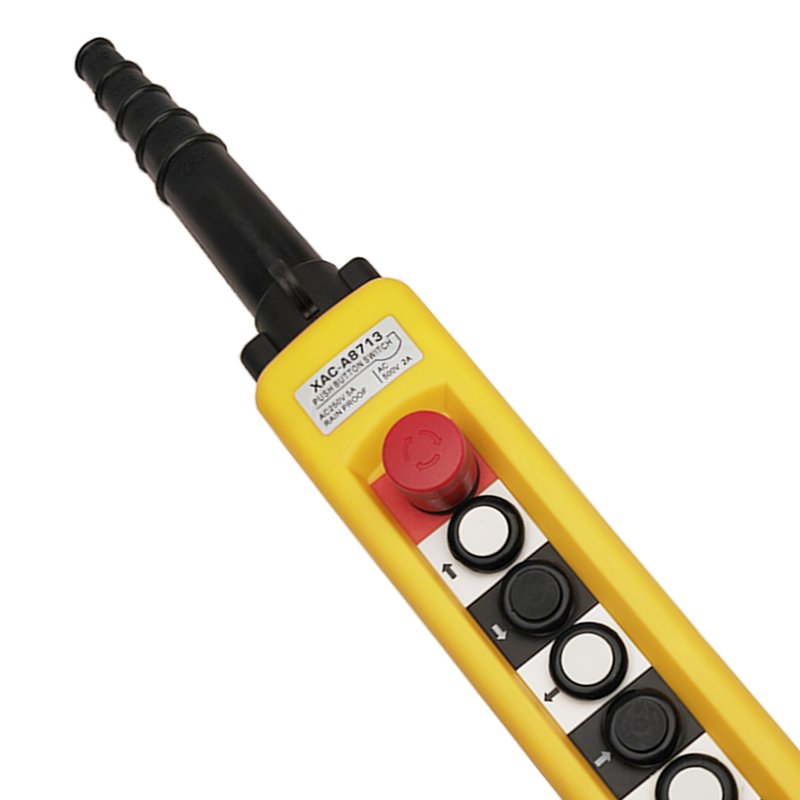

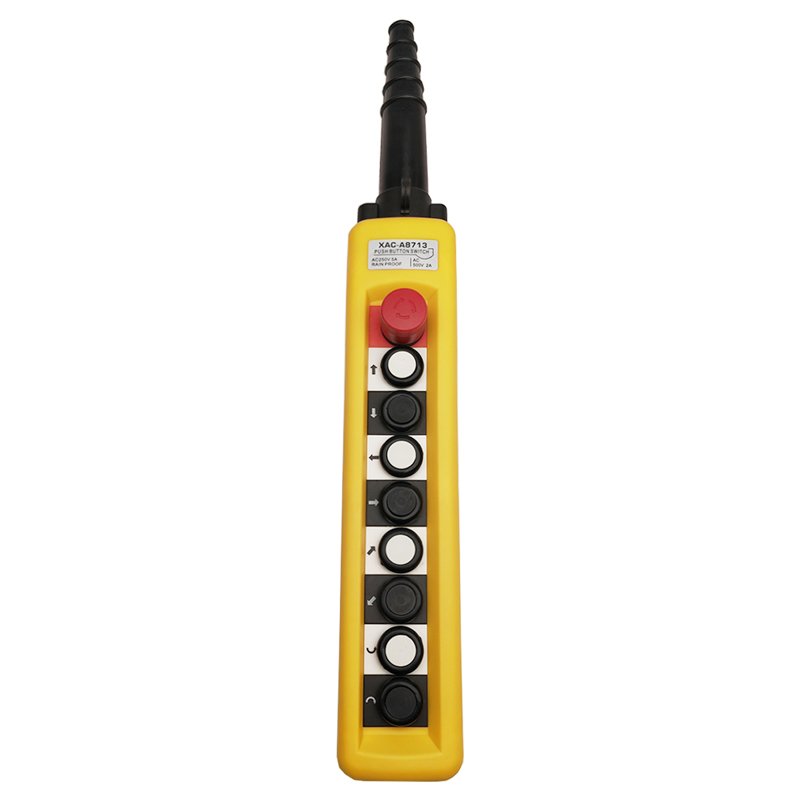

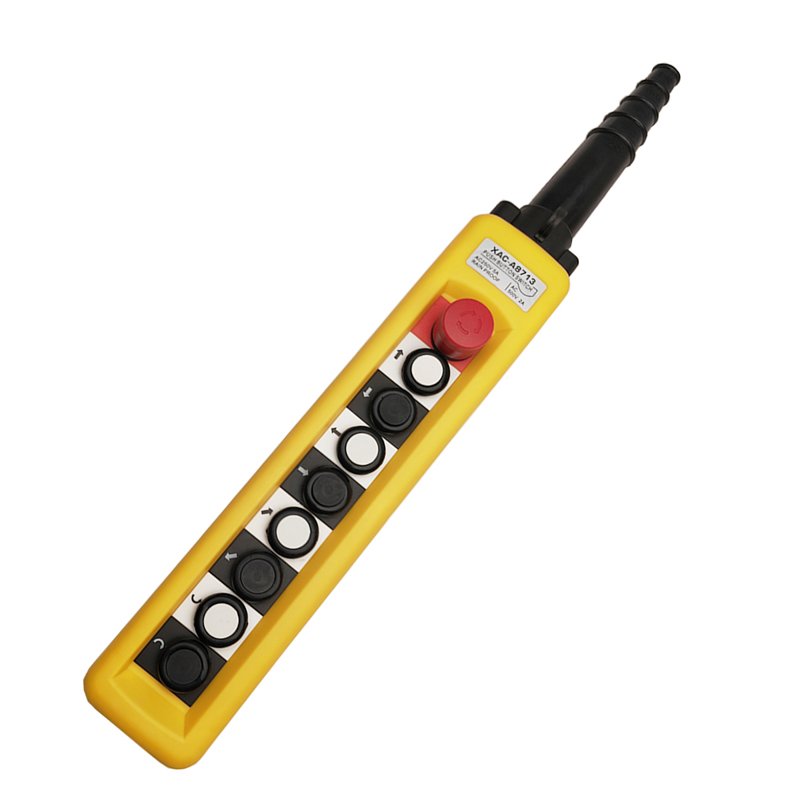

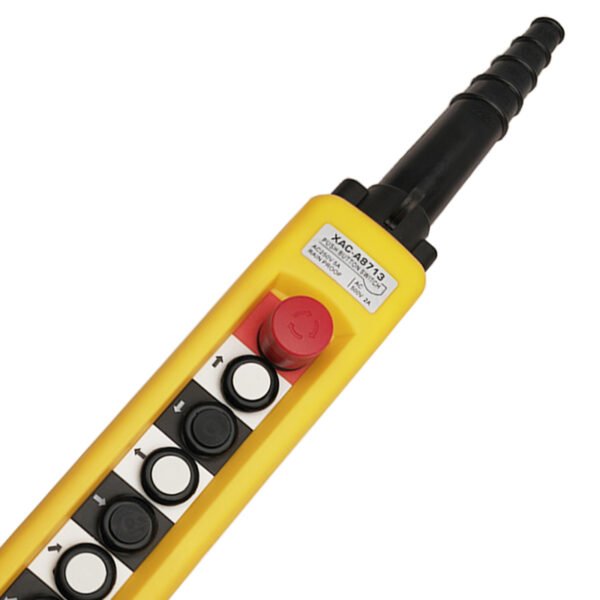

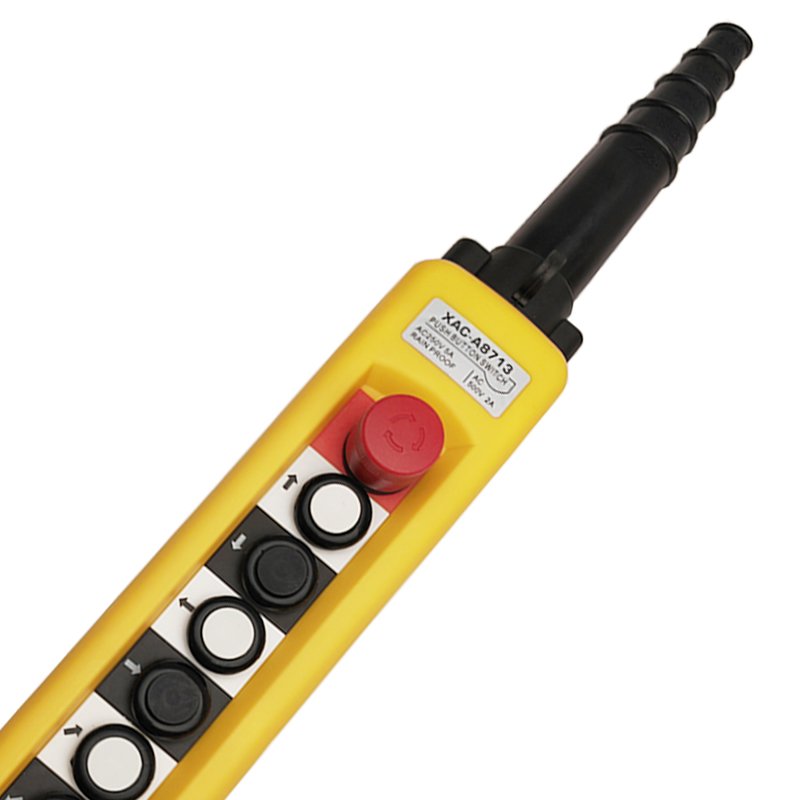

crane emergency stop switch The housing material is double insulated polypropylene; Screw clamping connection; Can provide complete sets of products; Also can provide a variety of parts for customers to assemble; XAC-A series suspension push-button box is durable, in line with IEC safety standards, suitable for all kinds of mechanical handling equipment; The appearance of this series of products is not only simple and clear, but also comfortable to operate.
The product closely follows the market demand development of multi-button combination control, more complete functions, and the electrical control circuit allows any key to select different combination functions, so that the device is easier to control.
